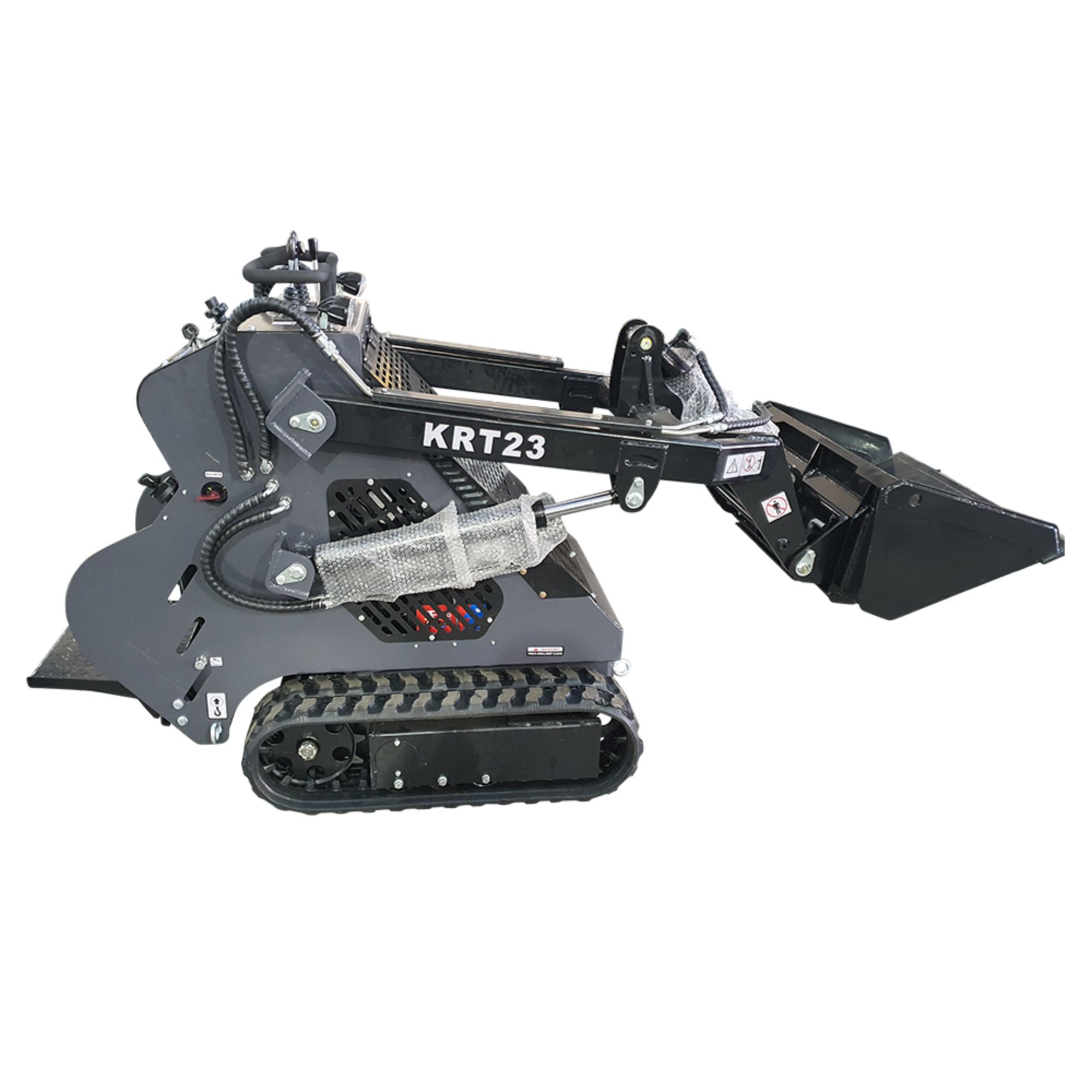

The AGROTK Construction Machinery B&S Engine Front End Mini Skid Steer Loader is the ideal device for anybody searching for effective and efficient machinery on the construction internet web site. This mini skid steer loader includes a flexible and effective B and S engine that's developed to final and manage any type of task internet web site. Particularly developed to offer security is ideal efficiency on any type of landscapes, creating it an essential for practically any type of construction internet web site. It truly is geared up along with a loader is front-end can definitely manage excavation jobs, launching, and eating products, transferring all of them in the direction of the preferred place along with simpleness. Among the extremely noteworthy functions is its own dimension is small is ideal for operating in slim or even hard-to-reach locations. Its own dimension likewise creates it simple to transfer coming from one place to another, creating versatility concerning the construction site a wind.
The loader's mini dimension doesn't concession its own energy, as it works at dealing with hefty great deals of up to 600kg easily. This work, integrated along with its own durable engine, equips the driver to finish any type of job rapidly and efficiently, conserving a long-time labor sets you back. Likewise packed along with easy to use manages. Its own active motion and trip is soft it easy appropriate to run the devices, consisting of beginners or even those along with restricted expertise. Security is simply a concern is leading off, and likewise this mini skid steer loader doesn't dissatisfy within this particular element. It includes a choice of top-quality security functions, like automated features being cut-off protected chairs, back-up alarm systems, and roll-over security.
AGROTK Construction Machinery B and S Engine Front End Mini Skid Steer Loader is an outstanding option for any type of construction internet web site. It is an effective, flexible, and maneuverable device that offers security, dependability, and simplicity of utilization. Its own small dimension, durable engine, higher value capability, and easy to use manages create it stand apart coming from the remainder. Spend within this particular machinery today, and expertise the distinction it will create in your construction internet web site procedures.
Model Information Configuration Status √Standard, △Optional ,×None Abnormal data in red |
KBT Series | ||
KBT23 | KRT23 | ||
Basic Performance Parameters |
Working Weight(kg) | 905 | 905 |
Bucket capacity(m³) | 0.12 | 0.12 | |
Travel speed low/high speed(Km/h) | 3 | 3 | |
Climbing ability(%) | 30 | 30 | |
Maximum lifting force (Kg) | 220 | 220 | |
C Maximum working height(mm) | 2450 | 2450 | |
B Maximum pin height (mm) | 1800 | 1800 | |
A Maximum unloading height(mm) | 1350 | 1350 | |
G Loading distance at maximum unloading height (mm). | 840 | 840 | |
H Wheelbase(mm) | 690 | 690 | |
F Ground clearance(mm) | 120 | 120 | |
L Bucket discharge angle | 20° | 20° | |
Body | E Bucket width(mm) | 812 | 812 |
J/K Overall Length(mm) | 2180/2330 | 2180/2330 | |
N Overall Width(mm) | 820 | 820 | |
O Body width(mm) | 810 | 810 | |
D Overall Height(mm) | 1420 | 1420 | |
M Slewing radius(mm) | 1400 | 1400 | |
Engine | Engine Brand | B&S | Rato |
Engine Model | 23HP | 740 | |
Max. Horsepower(pc) | 23 | 23 | |
Maximum power(Kw) | 16.79 | 16.8 | |
Max. speed(rpm) | 3600 | 3600 | |
Displacement (cc) | 627 | 739.3 | |
Cylinders | 2 | 2 | |
Cooling method | fan cooling | fan cooling | |
Engine oil change quantity(L) | 1.7 | 1.6 | |
Fuel Type | Gasoline | Gasoline | |
Fuel Grade | 92# | 92# | |
Theoretical fuel consumption(L/h) | × | × | |
Hydraulic system |
Main pump type/model | gear pumps | gear pumps |
Main pump brand | (Tianjin Xingzou) | (Tianjin Xingzou) | |
Rated set pressure(Mpa) | 22 | 22 | |
Maximum flow rate of main pump(L/min) | 75.6 | 75.6 | |
Multi-way valve | Two sets of 3 manual valves | Two sets of 3 manual valves | |
Brand of Multi-way valve | (Li Xin) | (Li Xin) | |
Rated Set Pressure(Mpa) | 16 | 16 | |
Hydraulic Linear Motor type | Cycloid hydraulic motor | Cycloid hydraulic motor | |
Linear Motor Brand | (Dan Fusi) | (Dan Fusi) | |
Motor Displacement | 350 | 350 | |
Tracks | △-Rubber (bandwidth*pitch*number of sections) | 200*72*32 | 200*72*32 |
Wheels | △ | △ | |
Configuration | Cab | × | × |
Roof | × | × | |
Handrail | √ | √ | |
Tensioning Forms | Hydraulic Tensioning | Hydraulic Tensioning | |
Air Conditioning | × | × | |
Fuel tank | Fuel tank(L) | 18 | 18 |
Hydraulic oil tan(L) | 30 | 30 |
